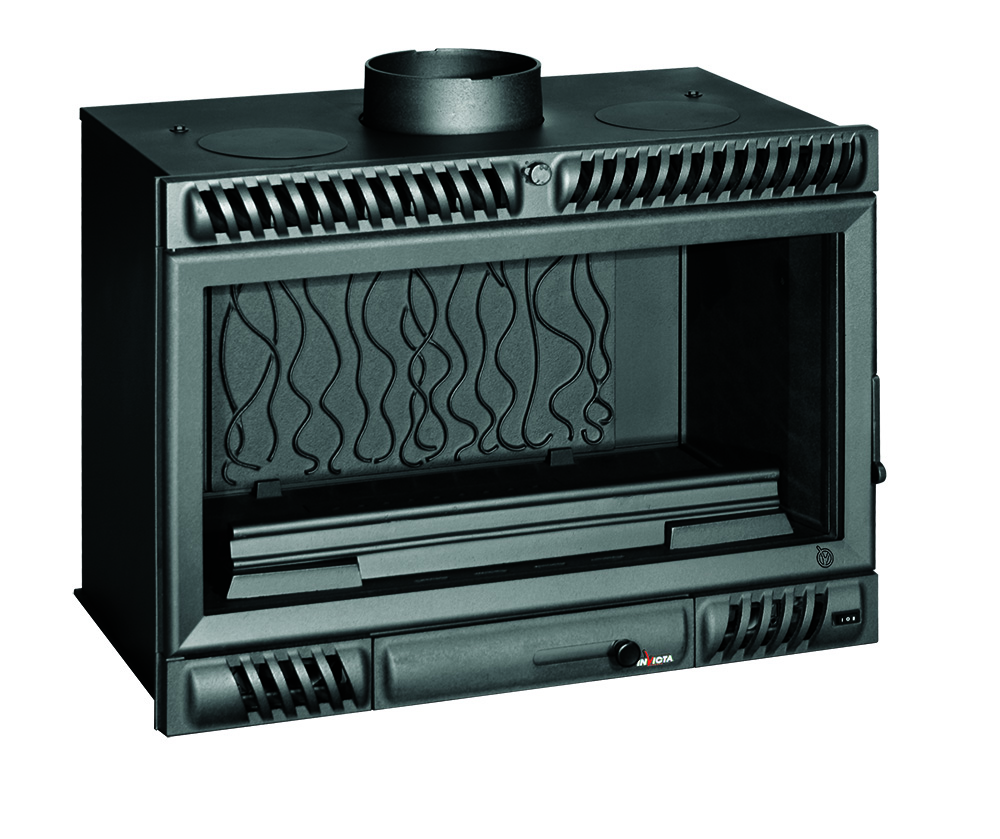

800 S Turbo Cassette Stove

Reference : P968044
This is the most powerful insert in our product line for transforming a large space into a warm, cozy nest.
Request a quote
Our labels
  • logo Flamme Verte 7 étoiles
  • logo Eco Design
  • logo Ecolabel A
  • v
Why this product?
Clean glass

The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.

Extended warranty 3 years

For log products, the free 3-year warranty extension is conditional on the product being registered online.

Hot air distribution through forced ventilation

The unit has 2 axial fans with 2 speeds controlled manually using a switch. The fans turn on automatically when the temperature reaches 50°C.

Intermittent and 3 hour extended burning

The unit can alternate between intermittent and extended burning mode. Intermittent mode requires frequent addition of new wood. It is particularly high-performing and respectful of the environment. Extended burning mode, with a low flame, enables 3 hours of operation without intervention.

Optional sleeves
Origine France Garantie (Made in France Guarantee)

The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.

Post-combustion system

Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.

Features
Optimal heat output (kW)
12 kW
Heating volume (m³)
160 to 360 m³
Heating surface (m²)
65 to 145 m²
Useful efficiency (%)
77
Seasonal efficiency - ETAS
66
CO (%)
0,12 %
CO (mg/Nm³)
1500
Dust (mg/Nm³)
30 mg/Nm³
GOC (mg/Nm³)
120
NOx (mg/Nm³)
200
Energy Efficiency Index (EEI)
101
Flue gas mass flow (g/s)
10,4
Flue gas temperature (°C)
310
Combustible
Bûches de 50 cm
Maximum log length (horizontally)
64 cm
Loading
Façade
Flue exit
Top
Flue diameter (mm)
200
Dimensions - H * W * D (mm)
632 x 795 x 485
Weight (kg)
151 kg
Design
Contemporary
Category of the feeder (opening, inserts)
800
Material
Cast Iron + Steel
Finish
Anthracite
Standard
EN 13229
Warranty
2 years + extension 3 years*
Option (accessories)
Hot air outlet sleeves
See more features
